About This

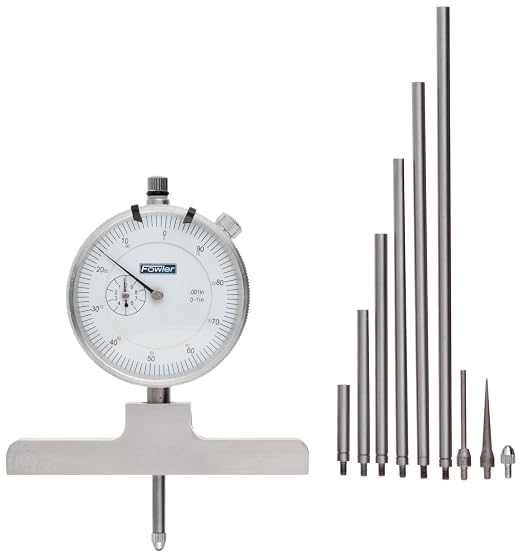

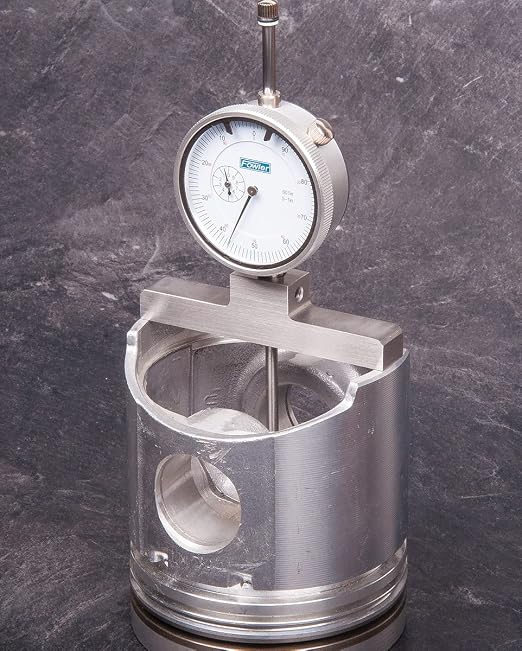

• Dial Depth Gage: 0-22" range with six interchangeable rods for providing rapid measurement of hole depths; the dial indicator can be easily adjusted for zero setting, Satin chrome finished dial depth gage with a range of
• Precision Measurements: Features a 0-1" travel indicator with 0.001" graduations
• Rod Extensions: Extensions of 1", 2", 3", 4", 5", and 6" that can be connected to reach a full 22" capacity; Includes carbide ball contact. 2 extra points included. One with 0.078" diameter x 1" length and one needle point of 1" length. All have standard 4-48 threads
• Durable Material: Features rack spindle and pinions made of hardened stainless steel and a base that is ground and microlapped to ensure long wear and continuing accuracy
• Set Includes: A dial indicator, 4" steel base, six extension rods, 2 extra points for small hole applications with a carbide ball contact point and a shop hardened plastic case
