About This

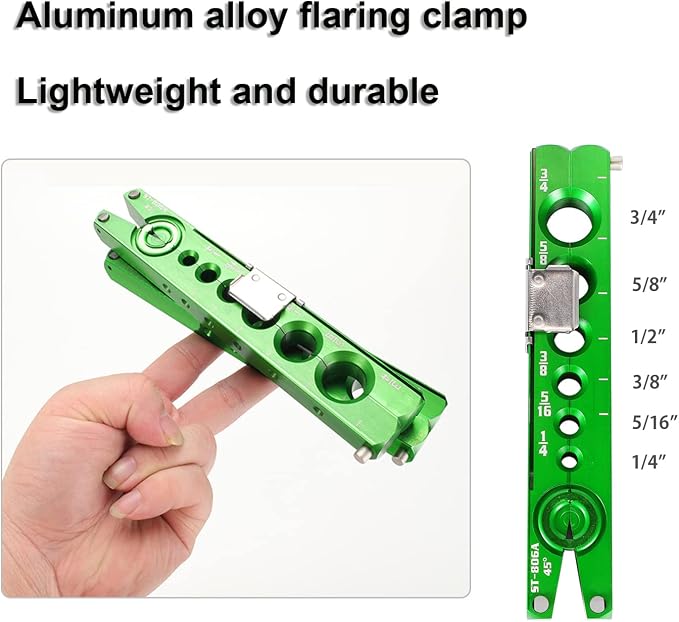

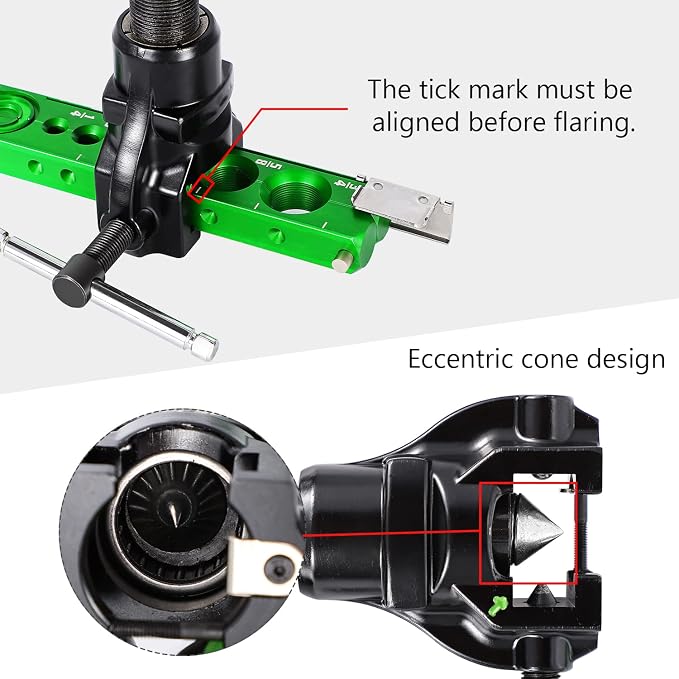

• [Eccentric Type Cone] - The eccentrically mounting hardened steel flaring cone produces a rolling action for even metal flow, giving uniform flare walls without wear. Applicable tube outer diameter: Φ1/4 ", 5/16", 3/8 ", 1/2", 5/8 ", 3/4".(NOTE: It will only do single flare - not double flare!)

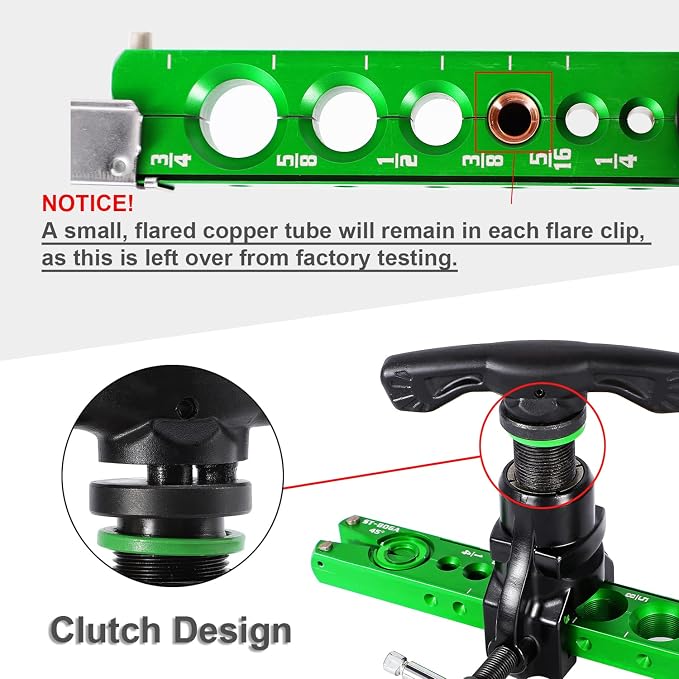

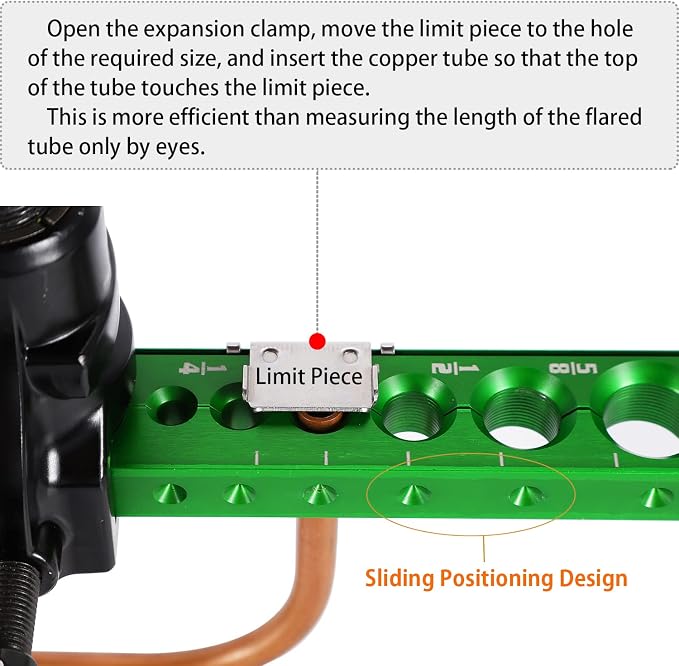

• [Limit Piece & Clutch] - (1)After inserting the copper tube, the length of the flared tube can be precisely limited by the limit piece, which is more efficient and convenient than measuring by eyes only. (2)There is a clutch in the rotating handle, which will automatically disconnect when the flaring operation is completed.
• [Ultralight] - The tubing flaring tool is made of aluminum alloy and is very light. It's less than 1kg, so you can hold it and work for a long time without getting tired.
• [Wide Application] - The tube flaring tool is applicable to soft metal tubes such as copper tubes / aluminum tubes. Widely used in electrical products, like HVAC, air conditioners, air heaters, refrigerators, etc.

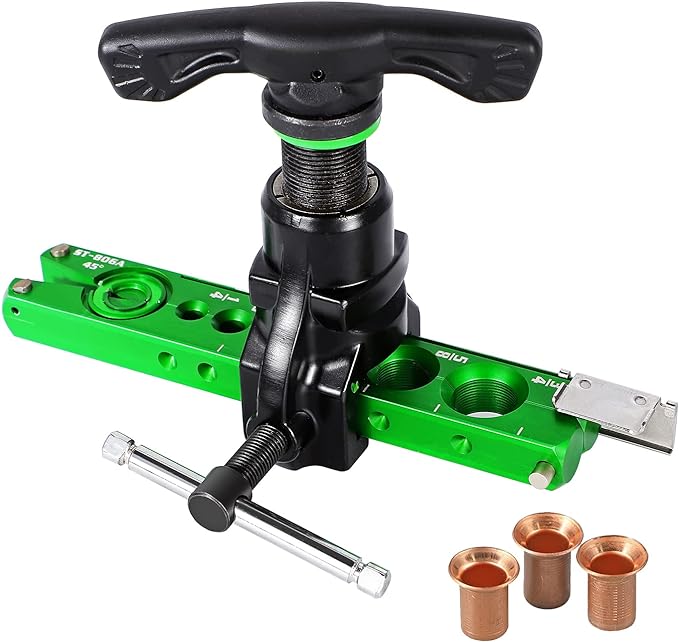

• [Packing List] - This flare tool includes the gantry * 1, inch-type flaring clamp * 1 (without a case).

Overview

• Size : 1/8” - 7/8”
• Material : Aluminum
• Brand : Bonvoisin
• Color : One piece
• Connector Type : Flare
• Thread Size : 1/4 - 3/4 HVAC
• Exterior Finish : Aluminum
• Thread Type : NPT
• Item Weight : 1 Kilograms
• Number of Pieces : 1
