About This

• [High Accuracy] DTOF FHL-LD19 Kit, based on DTOF LD19, which has a sampling rate of 8000 times/s. In addition, The lidar ranging distance can reach up to 12 meters Based on white objects with 70% reflectivity,so it can collect environmental information at a rather high speed and accuracy, ensure a real-time performance.
• [360 Degree 2D Scanning] The ranging core of DTOF FHL-LD19 rotates clockwise, performs 360 degree 2D omnidirectional lidar range scan on the surrounding environment, and generates an outline map. configurable scan rate from 5~13Hz, Typical 10Hz.

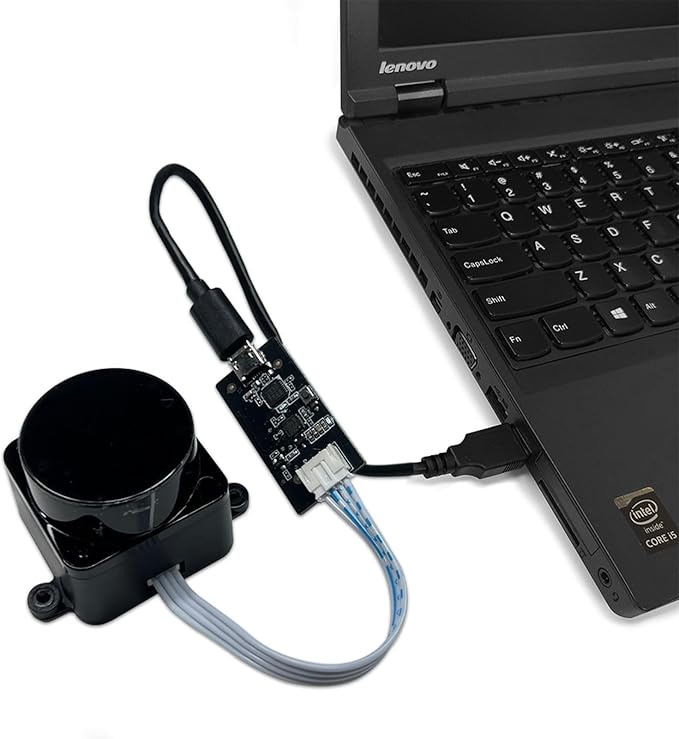

• [Plug and Play] With the 3 feature: Build-in Serial Port and USB Interface, Open Source SDK and Tools and Integration with ROS, Just connecting the DTOF FHL-LD19 and a computer via a micro USB cable, users can use the DTOF FHL-LD19 without any coding job. DTOF technology, which repairs electrical connection errors due to physical wear and prolong the life-span.
• [Widely Application] It can be used for home service/cleaning robot navigation and localization, general robot navigation and localization, smart toy’s localization and obstacle avoidance, environment scanning and 3D re-modeling, General simultaneous localization and mapping (SLAM), etc.
• [Wiki] You can find more docs by wiki.youyeetoo.com/en/Lidar/LD19.Any technical issues after purchase please contact with our forum by forum.youyeetoo.com/ or click "WayPonDEV" Store and ask a question. Or send message to monica @ youyeetoo.com

Overview

• Brand : WayPonDEV
• Are Batteries Included : No
• Color : Black
• Item Weight : 0.17 Kilograms
• Product Dimensions : 2.13"L x 1.82"W x 1.37"H
