About This

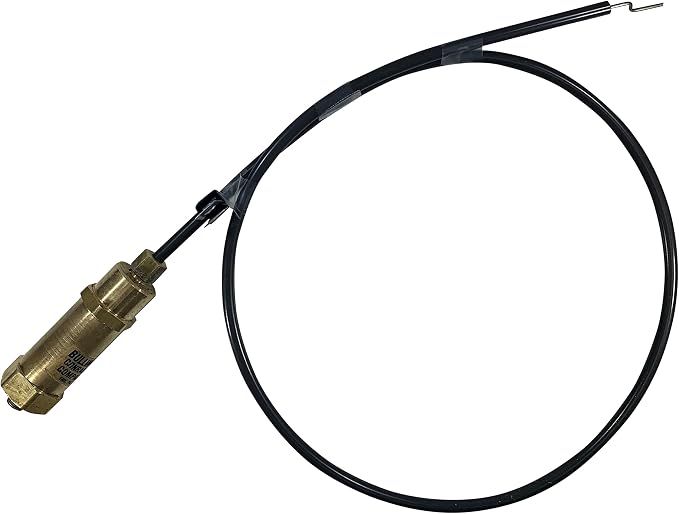

• Cable style Throttle Control, 60" Overall length for 13HP Engines and Larger.

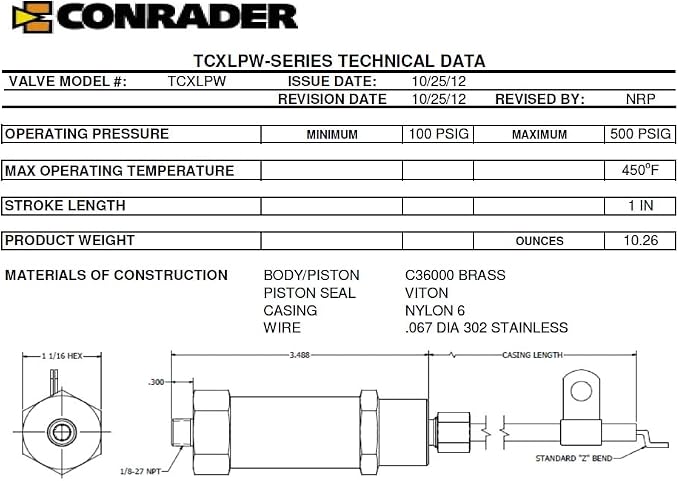

• Stroke Length: 1.00 inch. Retracted Spring Force: 28.80 LBF.

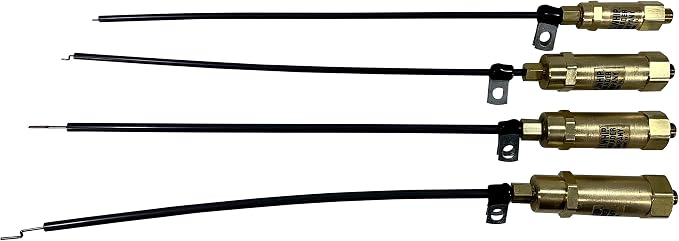

• Throttle Control: For Throttle Control Cable Variation option, please select your Throttle Control Cable HP and OAL (Overall length) from the Variation options above.
• Throttle Control Cable: 1/8" Male NPT Inlet Connection. The throttle control connects from the unloader to your engine throttle arm and acts as a relay notifying the engine of when its time to run or idle. Each throttle control connects from the throttle outlet on the valve with a Z Bend connection type on the tip of the cable.
• These Throttle controls are used in conjunction with a pilot valve and an unloader valve. When the compressor reaches the unload (cut-out) pressure the pilot valve sends a pneumatic signal to the throttle control which actuates and extends to reduce the engine speed. As the compressed air is used and the compressor reaches the load (cut-in) pressure the pneumatic signal is discharged by the pilot and the throttle control retracts to return the engine to normal operation speed.

Overview

• Material : Brass
• Brand : PRO-EDGE INDUSTRIAL PNEUMATICS AND CONTROLS
• Exterior Finish : Brass
• Inlet Connection Size : 1/8 NPT Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : NPT THREADING
• Outlet Connection Size : 1/2 NPT Inches
• Unit Count : 1.0 Count
• Manufacturer : Conrader co
