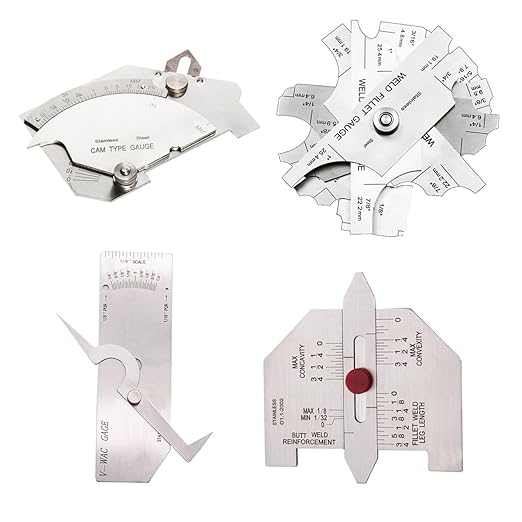

❤4 PCS WELD GAUGE SET❤ Package Includes 1 x Cam Type Gauge, 1 x Weld Fillet Gauge, 1 x Undercuts Checking Gauge, 1 x Convexity Concavity Checking Gauge, 4 x Instructions, 4 x Pouches. These Weld Gauges Are Suitable for Measuring Length, Height, Width and Angle for Welding. Made of Stainless Steel.

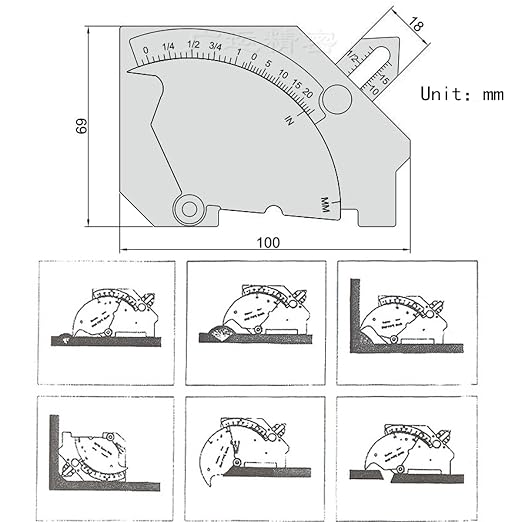

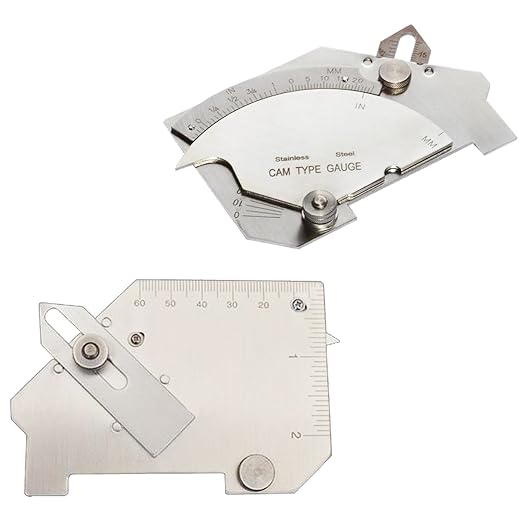

❤CAM TYPE GAUGE❤ Linear Measure Range: 0-60mm (0-2 in), Curving Measure Range: 0-20mm (0-1 in), Angle Measure Range: 0-60 Degree.

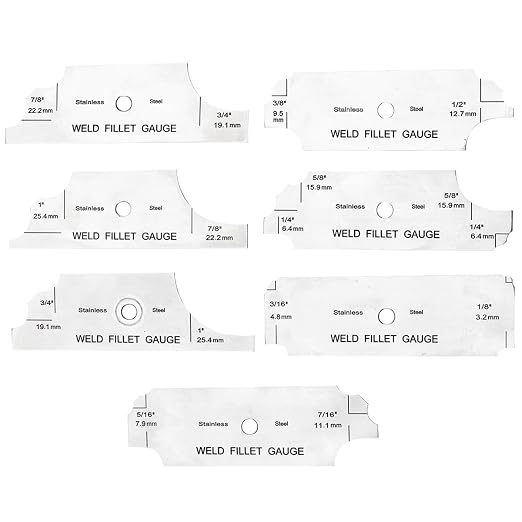

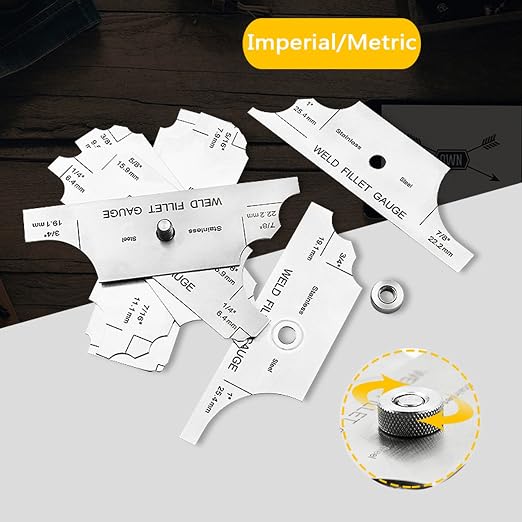

❤WELD FILLET GAUGE❤ Metric Measure Range: 3mm, 4mm, 5mm, 6mm, 8mm 9mm, 10mm, 11mm, 12mm, 14mm, 16mm, 19mm, 22mm and 25mm While Accuracy is Less Than +/- 0.5mm. Imperial Measure Range: 1/8” (3.2mm), 3/16” (4.8mm), 1/4” (6.4mm), 5/16” (7.9mm), 3/8” (9.5mm), 7/16” (11.1mm), 1/12” (12.7mm), 5/8” (15.9mm), 3/4” (19.1mm), 7/8” (22.2mm) and 1” (25.4mm) While Accuracy is Less Than +/- 1/50” .

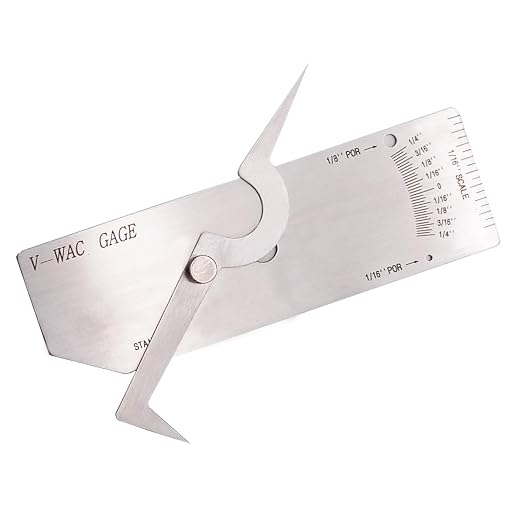

❤ UNDERCUTS CHECKING GAUGE❤ This Gauge Can Be Used to Check Undercuts Depth, Crown Height and Porosity. The Range is 0-1/4'' with 1/16'' Scale. With Fastening Screw to Read Measuring Result Easily.

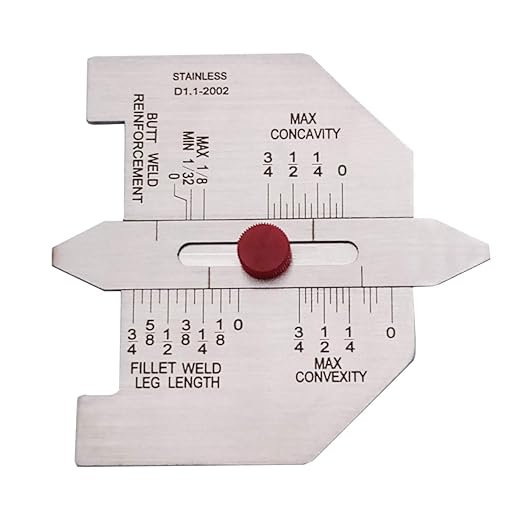

❤ CONVEXITY CONCAVITY GAUGE❤ This Gauge Can Be Used to Check The Tolerance of Convexity And Concavity. The Range is 0-3/4''. With Fastening Screw Can Be Fixed at Any Point Which Is Convenient for Readings.
Shipping takes place within 3-5 business days. If there is a problem with the shipment of the product, we will notify you via the email address you entered when ordering.
🚚 Is free shipping available?
We do not currently offer free shipping. However, this may be added at some point. We apologize.
🔧 How can I get a tracking number for my order?
If your order has been shipped, we will add the tracking number to your order and notify you via the email address you entered when ordering.
🛡️ How do I process a return or exchange?
For returns or exchanges, please contact us within 14 days of receiving the product, along with a receipt or screenshot of the purchase, and a photo of the product with the packaging or tag intact.
