About This

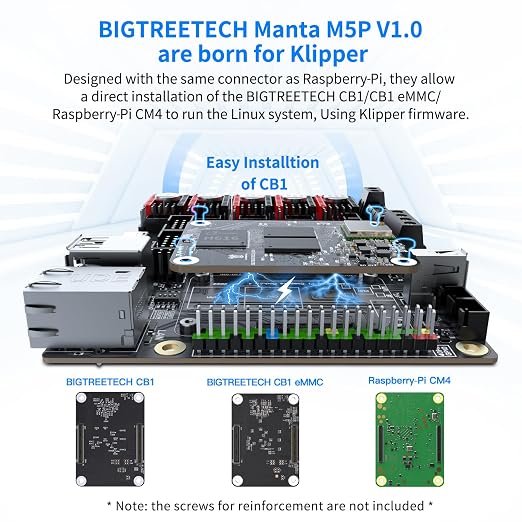

• Main Control Chip Upgraded: BIGTREETECH Manta M5P control board adopts 32bit ARMCortex-M0STM32G0B1RET6 chip, frequency of 64MHz, it can installation of the BIGTREETECH CB2/CB1/eMMc/Raspberry-Pi CM4 to run the Linux systyem, running Klipper, when without CB1 or CM4, can Running Marlin.

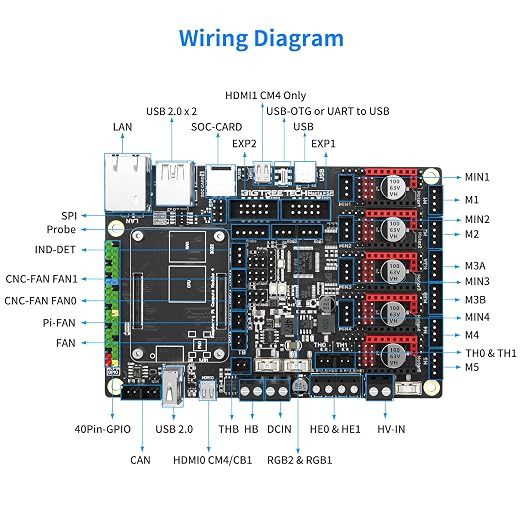

• Abundant Connectivity: BTT Manta M5P support USB2.0*3, LAN,DSC,CSI, SPI, HDMI0 and HDMI1 display (PITFT50 V2.1, HDMI5 V1.1, TFT35 SPI), SOC-Card, MCU-Card, Onboard CAN, Probe,RGB*2, SPI,EXP1+EXP2, MIN1-MIN4, 40Pin-GPIO (about CANBUS,Can be directly connected to EBB using Klipper's USB to CAN bus bridge function).
• Rich Expansion Ports: Support filament runout detection sensor, BLtouch, BIQU Microprobe, RGB Lights, automatic shutdown module, Onboard proximity switch and SPI(ADXL345) port ,support NPN and PNP type selection,(24V,12V,5V)voltage selection, for users use Klipper firmware to connect external acceleration sensor for acceleration compensation.
• Easy operation: Thermistor can select the value of pull-up resistor through jumper to support PT1000 without external module Convenient for user to DIY and the MCU firmware can be upgraded through SD card, or updated through DFU through Klipper's makeflash command.

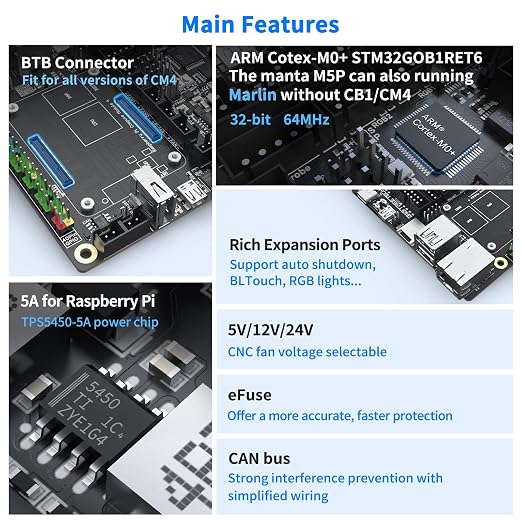

• Power chip upgraded: The Power Chip adopts TPS5450-5A, the 5A output perfectly matches the power supply need of Raspberry-Pi, integrated SPI and UART mode of TMC driver and DIAG pin,easily configur able with jumpers, please follow the Github Manual instructions for details.
• After-sales service: The firmware update and installation instructions for Manta M5P have been uploaded to bigtreetech Github. If you encounter any problems during use, please let us know as soon as possible and we will give you a satisfactory solution.

Overview

• Color : black
• Brand : BIGTREETECH
• Material : Plastic
• Display Type : LCD or TFT
• Unit Count : 1.0 Count
