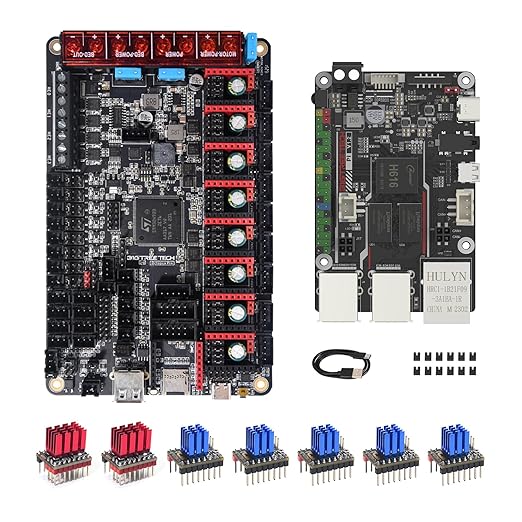

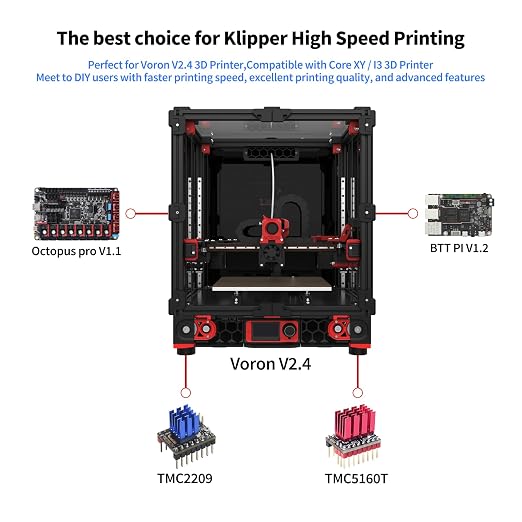

BIGTREETECH Octopus Pro V1.1 H723 Control Board+BTT Pi V1.2 Board+2Pcs TMC5160T V1.0+5Pcs TMC2209 V1.3 Stepper Driver Kit to Running Klipper High Speed Printing for Voron 2.4/CoreXY/VZbot 3D Printer

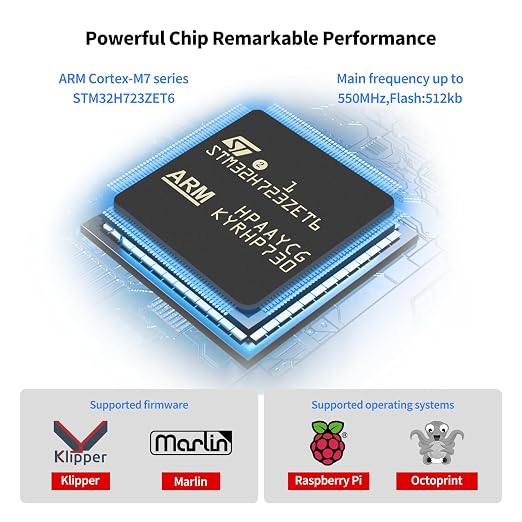

High Speed Printing Kit: BIGTREETECH Octopus Pro V1.1 h723 board adopts the ARM Cortex-M7 series-STM32H723ZET6, main frequency up to 550MHz, 512KB flash. Support Marlin/Klipper/Operation systems Raspberry -Pi/Octoprint, the best choice for Klipper high-speed printing.

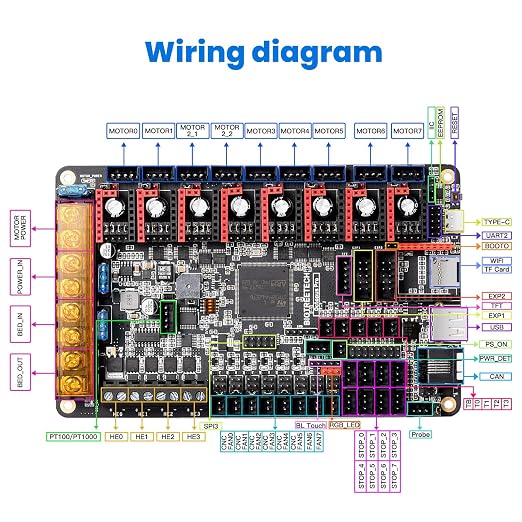

BIGTREETECH Octopus Pro V1.1 with 6 controllable fans, and two without control, with the possibility of selecting power supply voltage between Vin, 12V, and 5V. Onboard Max31864, support 2/4-wire PT100/PT1000 temperature measurement without welding. Onboard Jst interface, support CANBus function.

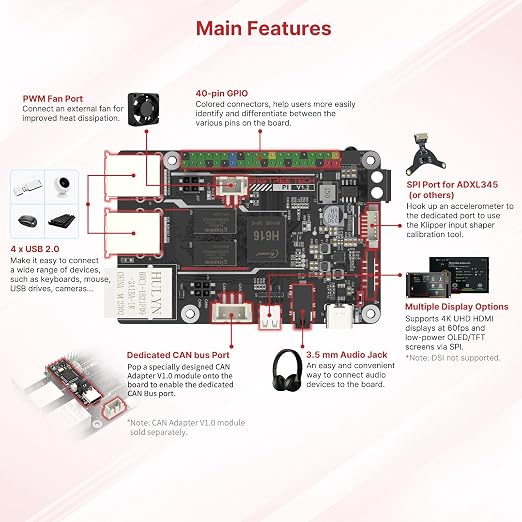

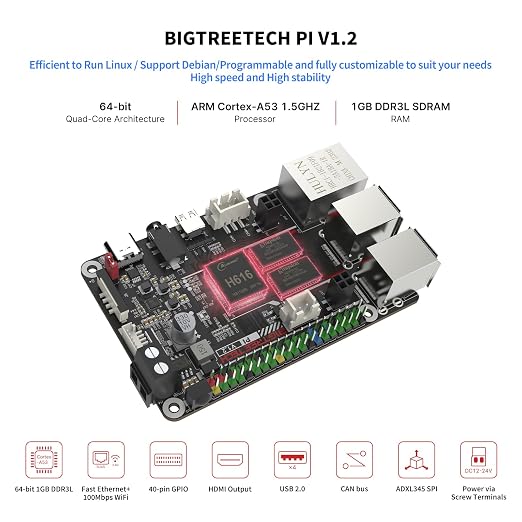

Main Core Board: BIGTREETECH BTT PI V1.2 motherboard adopts ALLWINNER H616, 64-bit Quad-core, Cortex-A53@1.5GHz Processor, RAM is 1GB DDR3L SDRAM. the same as the Raspberry-Pi 3B/4B, built-in 2.4G Wifi module, supports 100Mbps wireless network.
Display: BTT Pi V1.2 display adopts MaliG32 MP2 GPU, support OpenGL3.2 and HDMI2.0A UHD 4K Video & Audio output and SPI screen (such as HDMI5/TFT35 SPI), onboard 4xUSB2.0 port. Onboard Standard 40-pinGPIO header, 3.5mm Audio Jack, TF card slot, ADXL345 SPI.

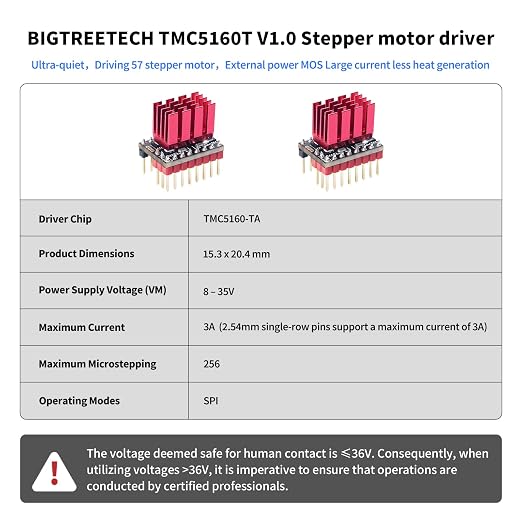

2Pcs TMC5160T: BIGTREETECH TMC5160T adopts TMC5160T-TA chip, with selectable power supply voltage from 8V to 36V. Maximum current 3A and subdivision is 256. Supports SPI mode & SD mode.

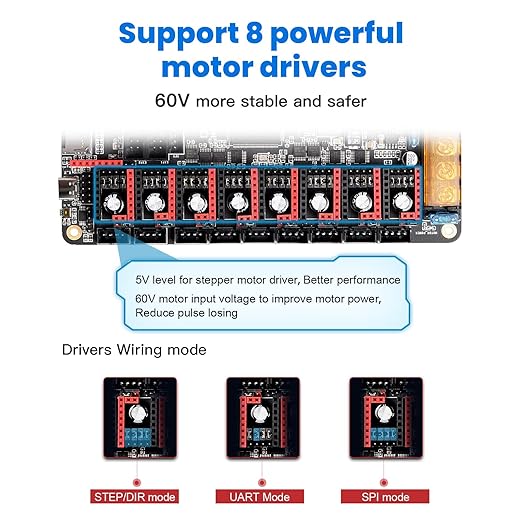

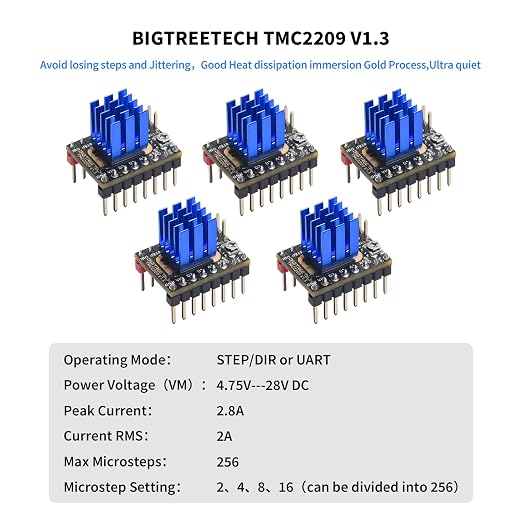

5Pcs TMC2209: Comes in 5Pcs BTT TMC2209 V1.3 stepper motor drivers and heatsink. Thanks to the StealthChop2, TMC2209 serves as ultra-quiet stepper motor driver with with a continuous current of up to 2.0A (with peaks of 2.8A). Voltage ranges from 4.75V to the maximun output of 28V.
After-sales Service: The manual and installation instructions have been uploaded to BIGTREETECH Github. If you have any problems during use, please tell us at the first time. We will give you a satisfactory solution
Shipping takes place within 3-5 business days. If there is a problem with the shipment of the product, we will notify you via the email address you entered when ordering.
