About This

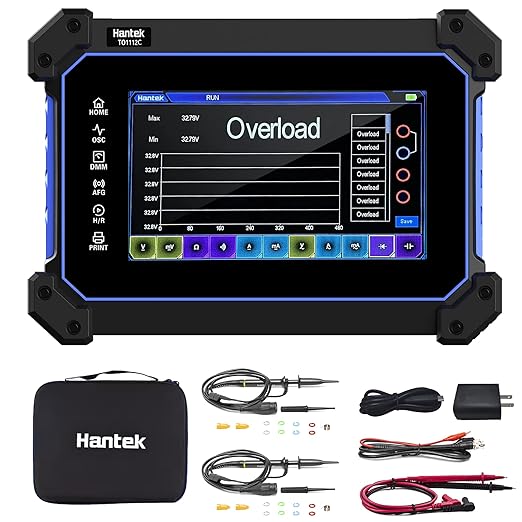

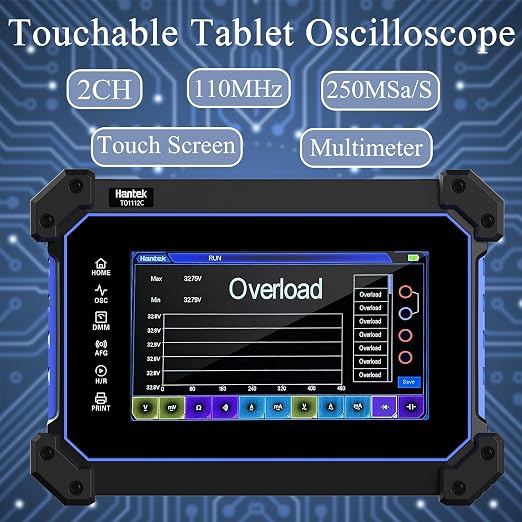

• Parameter: 2CH tablet oscilloscope, 110MHz bandwidth, 250MSa/s sampling rate, 8M depth storage; 8-bit vertical resolution, 5 trigger (Edge-triggered, Pulse Width, Video, Slope and Timeout Trigger)
• Multimeter: 4000 points, support Voltage / Current / Resistance / Capacitance / Diode / ON-OFF measurement; Maximum Input Voltage: AC:600V, DC:600V; Maximum Input Current:AC:10A, DC:10A; Diode: 0~1.0V

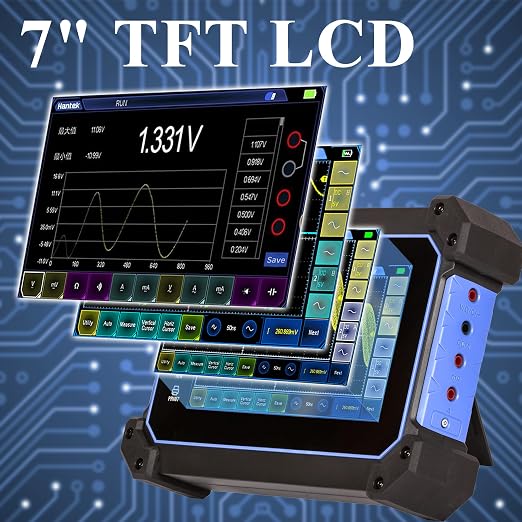

• Multi-Touch Screen: 7” TFT LCD more intuitive, touchable screen, more convenient; A user-friendly interface, and a satisfactory interaction experience; Adjustable brightness and sound; Set auto-lock time and shutdown time
• Adjustable suspension bracket(free-hands), adapt it to your demand; design with anti falling and anti-seismic function to protect the device, sturdy and durable
• Application: Built-in multiple functions, like data storage, frequency meter, FFT spectrum analyzer, math operations, 42 measurements, XY mode, 5 trigger and so on; Suitable for automotive testing, laboratory courses, etc

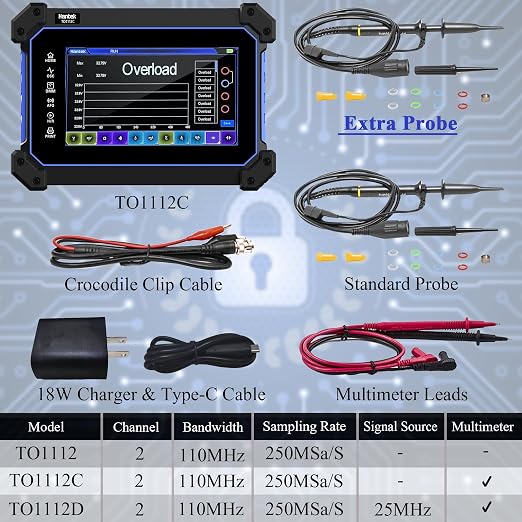

• Note: TO1112C ONLY Built-in Oscilloscope & Multimeter functions !!! NOT SUPPORT generator function

Overview

• Brand : Hantek
• Power Source : Battery Powered
• Style : TO1112C
• Color : Blue
• Item Weight : 2.65 Pounds
