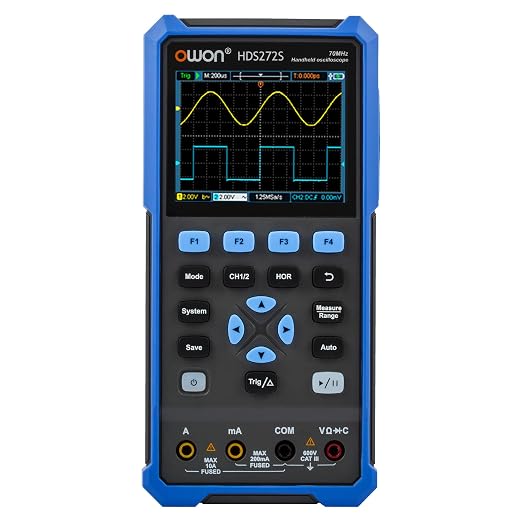

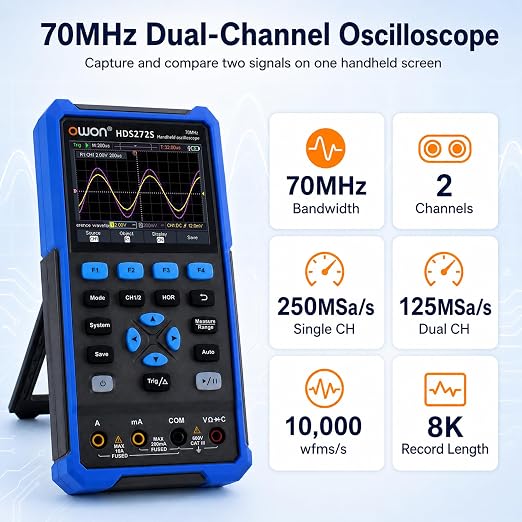

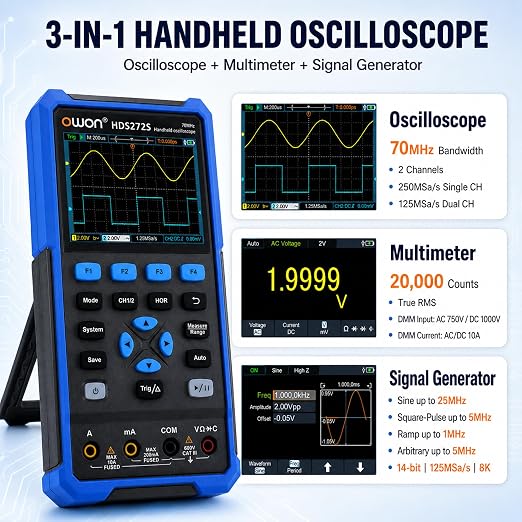

HDS272S: Portable Oscilloscope 70MHz, 20,000Counts Multimeter and 1CH 25MHz Arbritary Waveform Generator 3 in 1 Function for your measurement

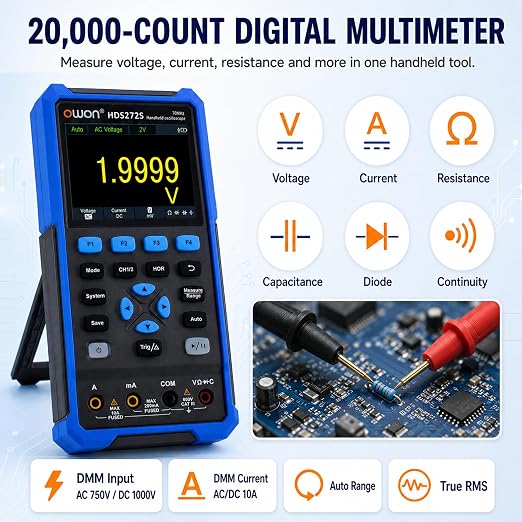

20,000 Counts DMM: True RMs; Voltage, current, resistance, diode,capacitance measuring and continuity measurement; Auto range function, easy to detectand debug; Max AC 750V, DC 1000V input voltage; Independent input of multimeter and oscilloscope; Reading hold function; Relative measurement function

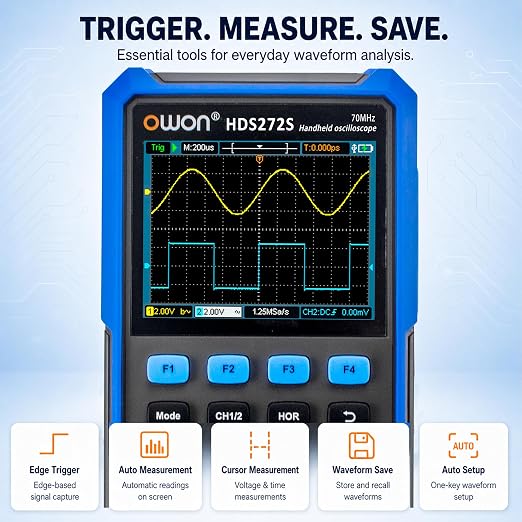

Save Function: Save 4 settings, 4 reference waveforms, 4 waveform images, 4 CSV waveform files; 7 kinds of auto measurement: Frequency, Period, Amplitude, Max, Min, Mean and PK-PK

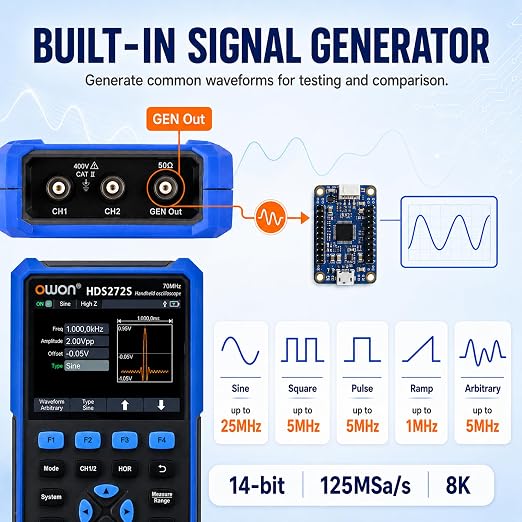

Signal Sources: Max 25MHz frequency output; Output sine, square, ramp, pulse and built-in special waveforms; 0.1Hz frequency resolution; 14-bit vertical resolution,125MSa/s high sampling rate; 8k waveform length; Max 5Vpp output amplitude

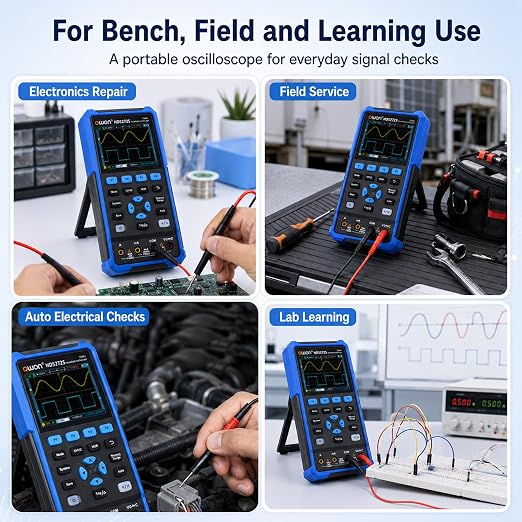

Application: Automotive oscilloscope perform fine part for troubleshooting in the field. Wide usage, digital oscilloscope can be practical in automotive diagnostic job to detect the injectors and ignition coils or other; discover intermittent DC voltage drops or issues with industrial equipment and sensors; experimental course for school educational; other range in heavy electrical, low voltage prototyping, delicate repairs and so on
