About This

• 【Measurement Range】 The UT502C megohmmeter has a maximum output voltage of 2500V (with four selectable voltage levels: 250V, 500V, 1000V, and 2500V). The maximum measurement range is 20GΩ. It supports multiple measurement modes, including single measurement and continuous measurement.
• 【Upgraded Insulation Resistance Tester】UT502C Insulation Resistance Ommeter features a new design with large-scale integrated circuits and digital circuits for insulation resistance measurement, AC voltage measurement, and insulation continuity measurement.
• 【LCD Backlit Display】UT502C Megger tester features a large backlit display with functional symbols for measurement data, large characters on a large screen for clearer and easier reading. It is particularly suitable for use in dark environments.
• 【Buzzer alarm】The UT502C Insulation Ommeter is equipped with a buzzer alarm function. When the measured insulation resistance value is below 4MΩ, the buzzer will sound an alarm. This digital insulation resistance tester also has an automatic shutdown function, which will turn off automatically after 10 minutes of inactivity.

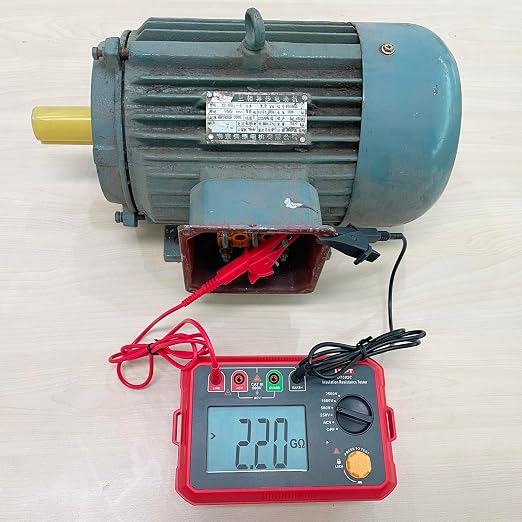

• 【Application Scope】The UT502C Insulation Resistance Tester is suitable for measuring the insulation resistance of various electrical equipment and insulation materials such as transformers, motors, cables, switches, and electrical appliances. It is used for maintenance, testing, and calibration of various electrical equipment, as well as for equipment inspection and repair in industries such as metallurgy, telecommunications, manufacturing, petroleum, power, and chemicals.ecm motor tester hvac

Overview

• Brand : UNI-T
• Power Source : Battery Powered
• Style : 2.5KV-20GΩ megger tester
• Color : Red + Black
• Item Weight : 0.65 Kilograms
