About This

• Parameter---HDS272 3.5 inch LCD automotive oscilloscope with 2 channel (oscilloscope+multimeter), 70MHz bandwidth, 250MS/s sample rate, 8K record length; 10,000 wfrms/s waveform refresh rate; 8 bits vertical resolution; 10mV/div - 10V/div vertical sensitivity; input coupling: DC, AC, and Ground

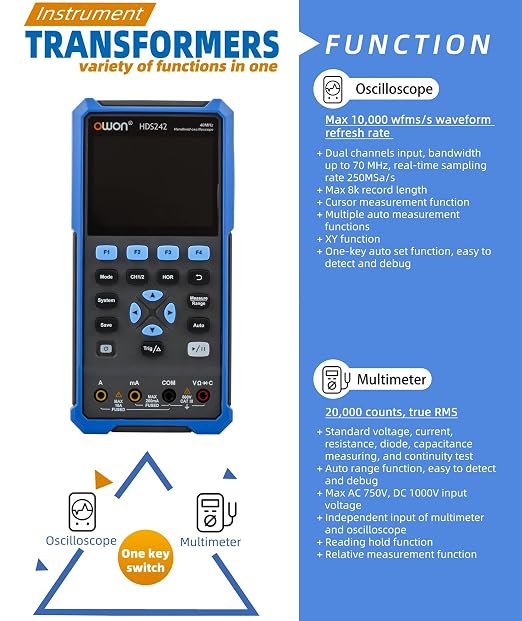

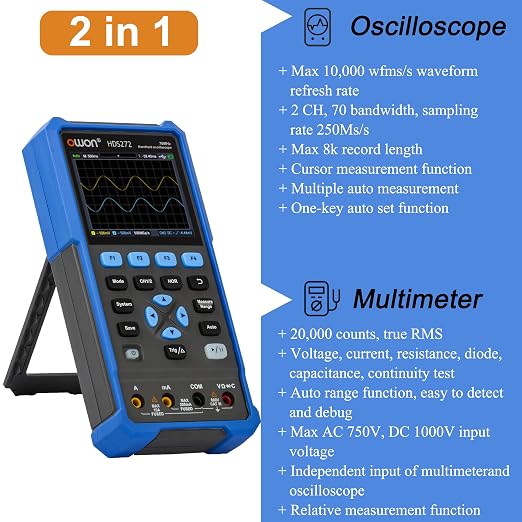

• 2-in-1---2CH digital oscilloscope with 2 in 1 function, portable oscilloscope built-in multimeter is very handy. You can work well done with one device for your jobs or your experiments. At the same time, its detection date is very accurate, 20,000 count DMM, Scope update rate at 10k/s, perfect ranges of sweep time and vertical scales

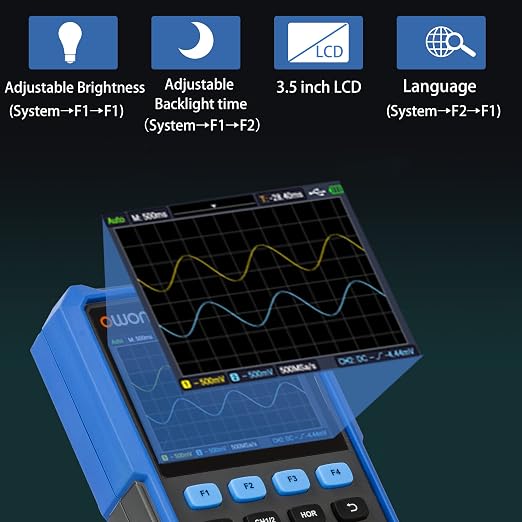

• Crisp and Portable---Crisp and bright 3.5 inch color LCD screen, showing a higher resolution larger character display, even though in dim ambient light situations or outdoor environment, digital oscilloscope can be intuitive in its read. This handheld oscilloscope is portable and comfortably fits in the hand. It is much lighter, easier and perfect for field use. Practical and intuitive menu page layout, it is intuitive and handy in its use
• Multipurpose---This automotive oscilloscope perform fine part for troubleshooting in the field. Wide usage, digital oscilloscope can be practical in automotive diagnostic job to detect the injectors and ignition coils or other; discover intermittent DC voltage drops or issues with industrial equipment and sensors; experimental course for school educational; other range in heavy electrical, low voltage prototyping, delicate repairs and so on

Overview

• Brand : OWON
• Power Source : Corded Electric
• Style : HDS272/70MHz/2CH
• Color : blue

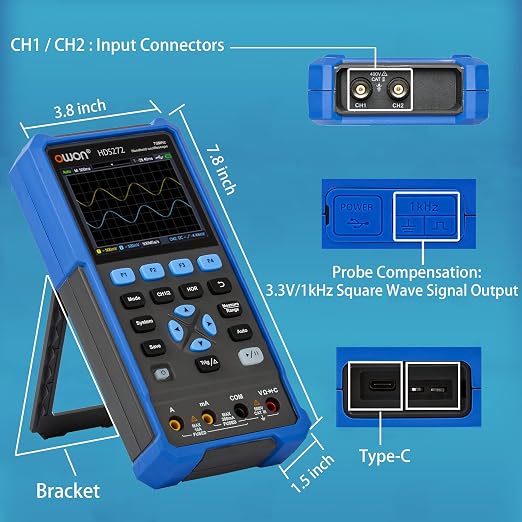

• Item dimensions L x W x H : 8 x 1.5 x 3.8 inches
