About This

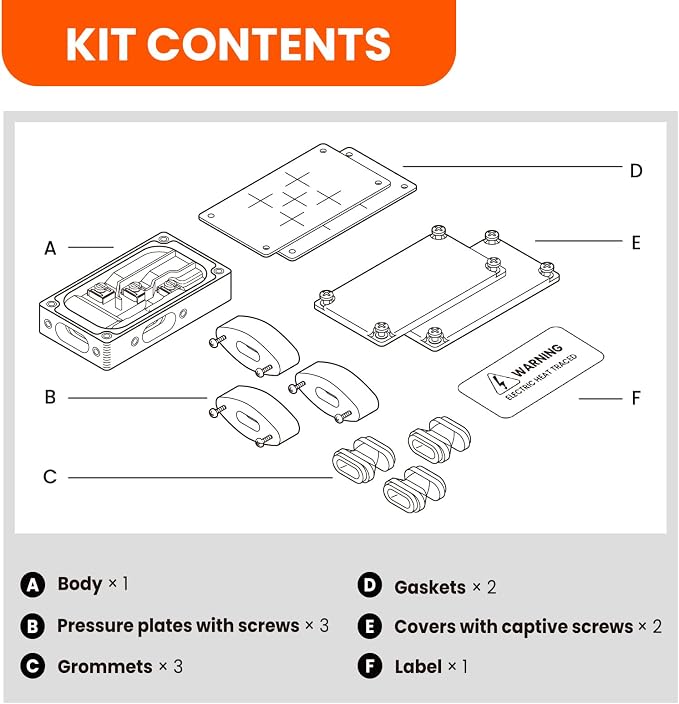

• Complete Kit Contents: This low-profile tee & splice connection kit includes 1 x tee splice body, 3 x pressure plates with screw, 3 x watertight sealing grommets, 2 x gaskets, 2 x housing covers with captive screws, and 1 x warning label

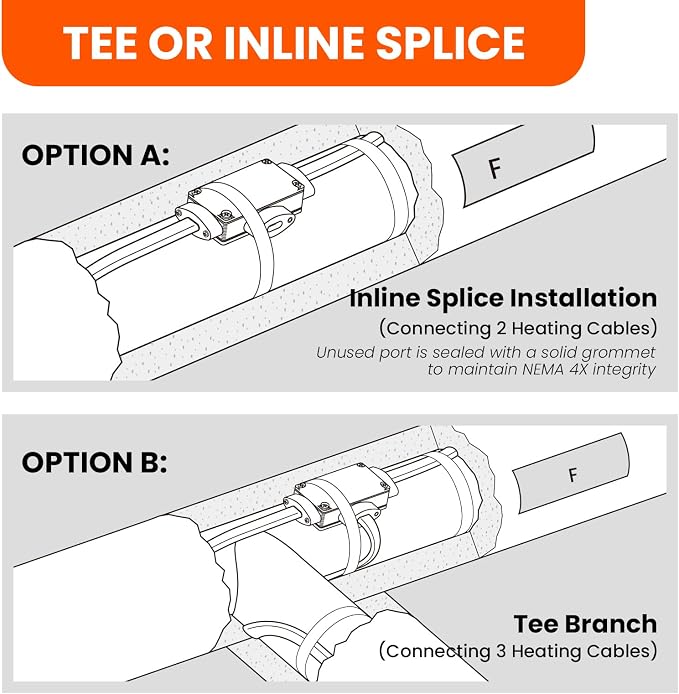

• Versatile 2-in-1 Design: Tee or Inline Splice – Engineered as a 3-port tee connection unit. For inline splice applications, simply use two ports and leave the third port sealed with the factory-installed rubber plug. This maintains complete NEMA 4X watertight integrity without any additional parts or steps

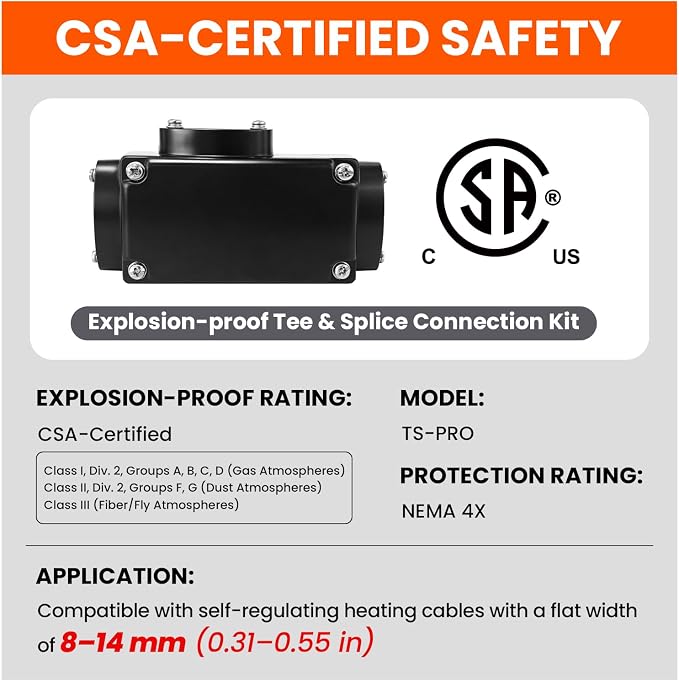

• CSA Certified: Suitable for a wide range of environments. Certified for use in hazardous & ordinary locations: Class I, Div. 2, Groups A, B, C, D (gas/vapor); Class II, Div. 2, Groups F, G (dust); and Class III (fibers/flyings)

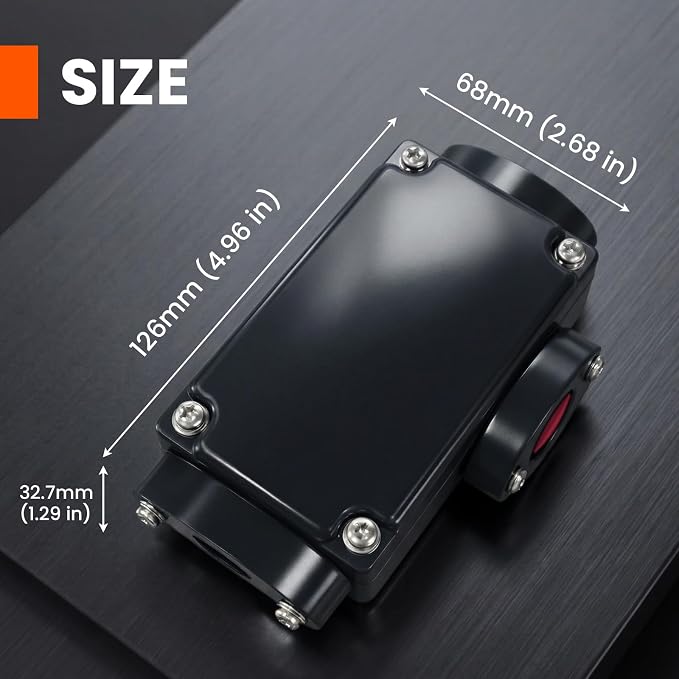

• NEMA 4X Rated & Low-Profile Design: The robust housing provides a NEMA 4X waterproof seal, protecting connections from moisture, rain, sleet, and ice. Its low-profile design minimizes bulk, allowing the connection to be easily and neatly covered with thermal insulation and cladding
• Easy Installation: Designed for straightforward field installation with standard tools. Follow the included instructions for safe and proper grounding and sealing
