About This

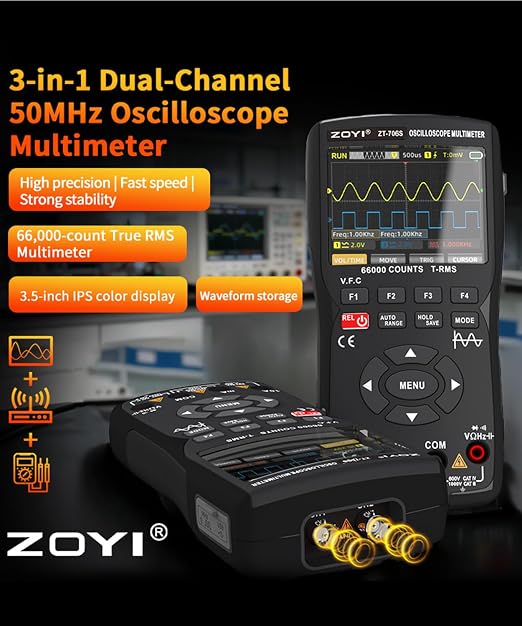

• 【3-in-1 MULTIFUNCTIONAL METER】： The latest High-precision products model from ZOYI & ZOTEK integrates three major functions: oscilloscope, multimeter and signal generator. It is well-suited for electrical work, home appliance and digital device repair, electronic DIY projects, basic laboratory experiments, vehicle maintenance and many other applications.

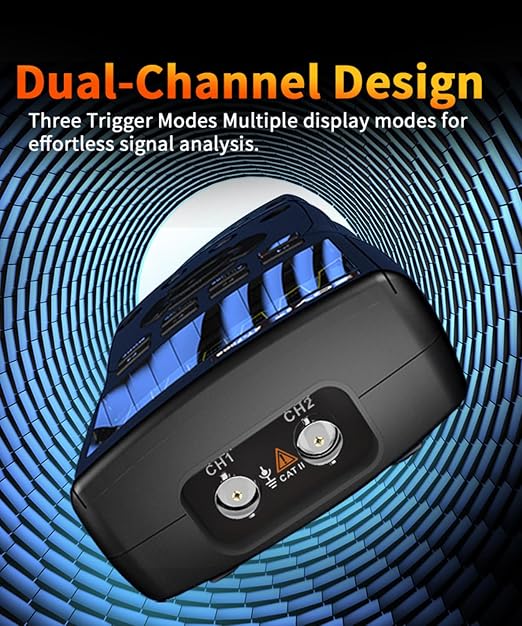

• 【OSCILLOSCOPE】：Dual channels 50MHz bandwidth, Real-time Sampling Rate 1.5Sa/s ~ 280MSa/s. Infinite persistence mode, horizontal sweep speed from 10ns/div to 20s/div and vertical sensitivity of 20mV/div to 10V/div, with a maximum storage depth of 128Kbyte. It accurately captures electrical signals and analyzes intermittent hidden circuit faults.

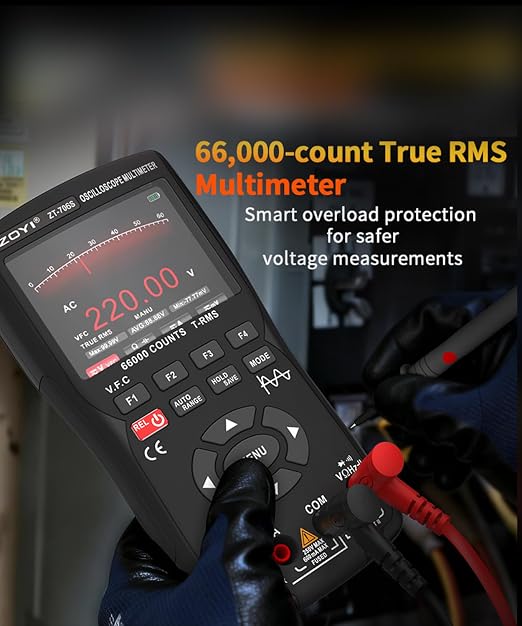

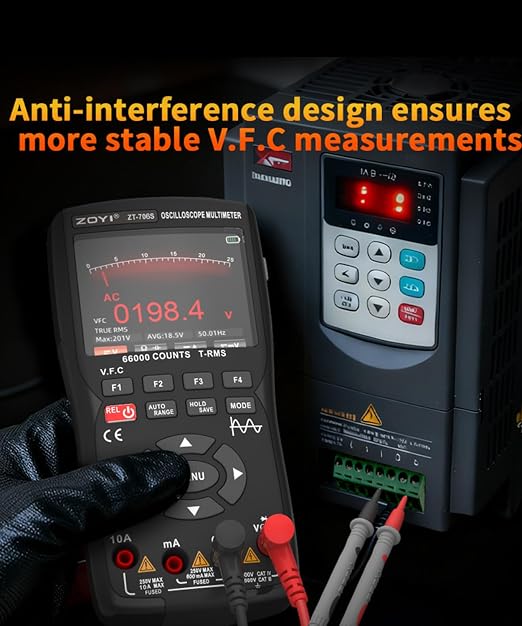

• 【ENHANCED 4½ DIGIT MULTIMERE】：66000 counts, auto-ranging and True RMS. AC Voltage: 0~750.0V, DC Voltage:0~1000.0V, AC/DC Current:0~10.000A, Resistance:0~66.000MΩ, Capacitance:0~99.99mF, Frequency:0~99.99kHz, Continuity test, Diode and VFC . Perfect for professional electricians, laboratory teaching, precision quality inspection and equipment repair.

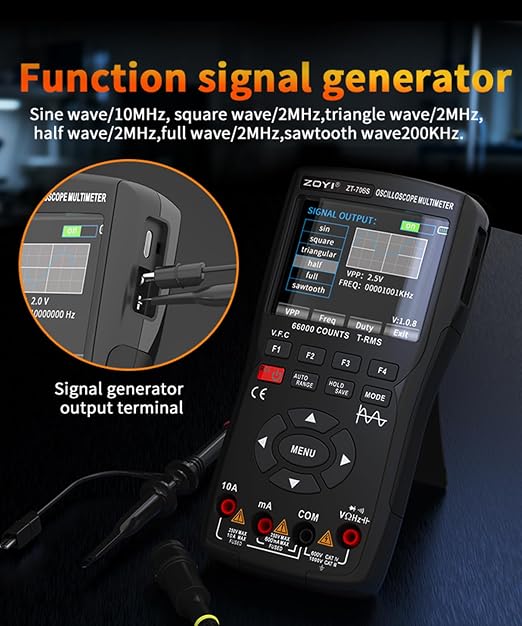

• 【SIGNAL GENERATOR】：It outputs various waveforms with corresponding frequencies: Sine wave up to 10MHz, square wave, triangular wave, half-wave and full wave up to 2MHz, sawtooth wave up to 200KHz. It can generate standard electrical signal waveforms.
• 【DATE STORAGE&DATE HOLD】：The ZT-706S supports storage and export of oscilloscope waveform data. In oscilloscope mode, long press the HOLD/SAVE key to save waveforms and export data to a computer for circuit analysis. In multimeter mode, short press the same key to lock measured values, making it easier to view, record waveforms and readings.
• 【USER-FRIENDLY】：This handheld oscilloscope meter is compact, portable and easy to operate. It features a 3.5-inch full-view IPS color screen with adjustable backlight. The buttons and menu interface are clear and intuitive. It also supports firmware updates, backed by a 12-month warranty and 24-hour email support.

Overview

• Brand : ZOTEK
• Item Weight : 0.84 Pounds
• Item dimensions L x W x H : 6.97 x 3.5 x 1.57 inches

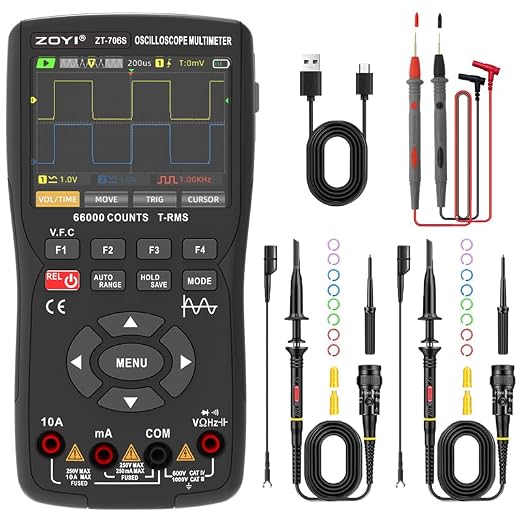

• Number of Items : 9
• Manufacturer : ZOTEK
